Wesort Brand Rice Color Sorter,Barley Rice Sorting Machine

FOB Reference Price:Get Latest Price
  • 1 - 4 Pieces
    US $32666.00
  • >=5 Pieces
    US $32366.00
Contact Supplier Start Order
Loading... Place Sample Order
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ZRWS
Model Number:
6SXM-272
Production Capacity:
2.4-5(T/h)
Voltage:
220V 50Hz
Power(W):
1.8-3.0(Kw)
Weight:
820(Kg)
Dimension(L*W*H):
2010*1530*2100(mm)
Certification:
CE/SONCAP
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
high quality ccd color sorter
Chutes:
4
Channels:
272
Function:
rice sorting
Service:
24hours Online Service
Capacity (T/H):
4
Sorting accuracy:
99%
Second rejection rate:
10:1
Power Kw:
1.5-2.0
OEM:
welcome
Supply Ability
Supply Ability:
99 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
wooden case for high quality ccd color sorter
Port
Shenzhen
Lead Time :
Shipped in 15 days after payment
Video Description
Product Description

ZRWS Brand Rice Color Sorter

SPECIFICATIONS
Type
6SXM-272

Carryover ratio(bad:good)
12.5:1

Capacity(T/H)
2.4-5

Sorting precision(%)
99.99%

Voltage
220V/50HZ

Power（kw）
1.8-2.6

Air Pressure（Mpa）
0.6-0.8

Air Consumption（L/min)
≤3200

Advantages

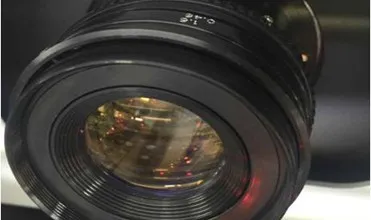

5388 pixel high-resolution line scan CCD image sensor allows to identify any defects with subtlest color variation.

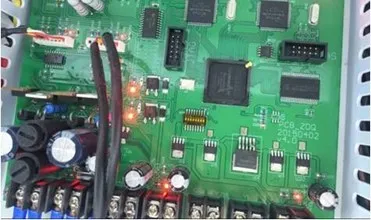

Intelligent algorithms colors shapes,digital information processor decicated for powerful industial control,high intelligent image processing algorithms dedicated for color sorter.High-speed capture,high-speed processing,which improves the consistency of the signal path and stability and reliability of the system,thus to ensure the sorting effects.

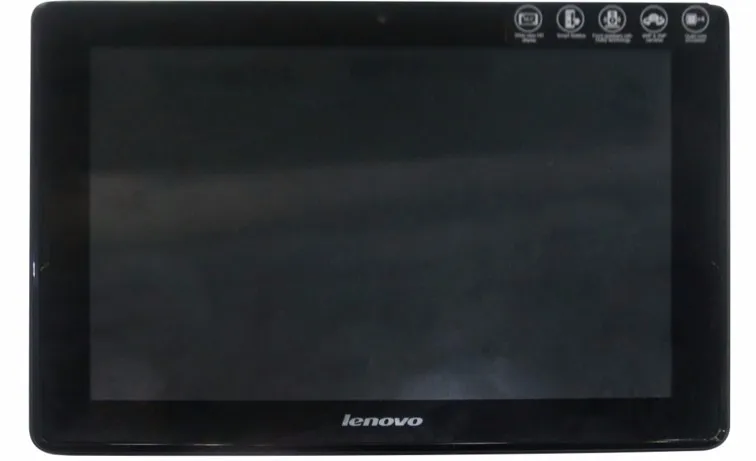

Wireless Panel PC remote Operating system. 12 inch panel PC and android 4.4 operating system. Humanized operation screen is user-friendly.

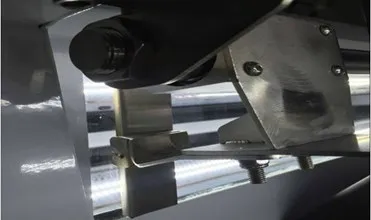

Automatic cleaning system,with adjustable frequency and duration.



Interactive remote control


Reject & Accept
Operation

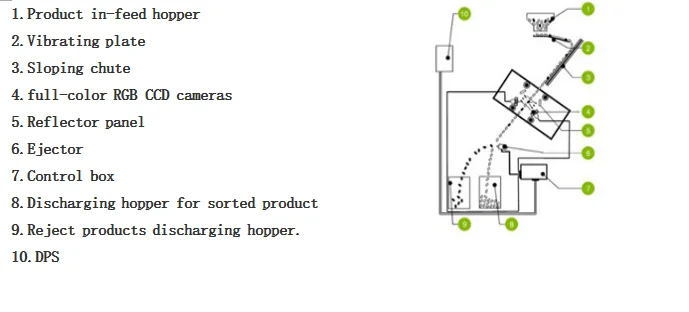

Input product is loaded into the in-feed hopper (1), it moves along the vibrating plate (2), until it flows on to a sloping chute (3), where it is individually checked at 360° and sorted by RGB-Full color cameras (4) . Depending on the signals received by the optical device, the sorter software controls the pneumatic device (6), which physically separates the unwanted products out of the conforming ones, which naturally reach their discharging hopper (8). The rejected products are instead deviated by a jet of compressed air produced by the relevant ejector and discharged in the front side hopper (9). In automatic resort versions, the sorted or rejected product to be conveyed to another section of the machine to undergo an identical process.


Packing & Delivery
Packaging
Size
2110(L)*1630(W)*2200(D)
Weight
970KG

Packaging
Details
Export wooden packing.

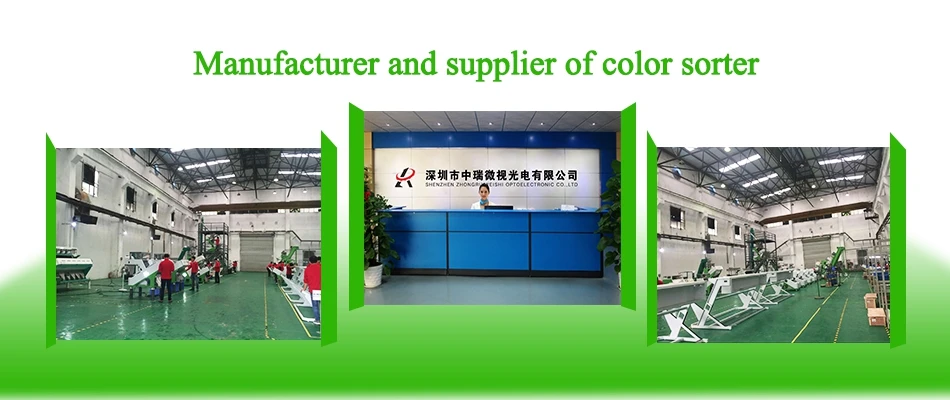

About us

We specialize in color sorter R&D and production basis on independent technology development,having the leading technology in intelligent color sorter. Located in XinLong industrial park ShaJing town,BaoAn district,ShenZhen China,with an area of 16,000 square meters. As the largest color sorter equipment manufacture base in south China, we have the top-level color sorter technical team worked in Europe and America for years. We make great efforts to explore and lead the development of color sorter technology.
At present,our products include rice color sorter,grains color sorter,nuts color sorter,cereals color sorter ,beans color sorter, seeds color sorter ,tea color sorter, Color Sorters for Industrial products and Belt Color Sorter .Our products meet the demands ofcolor sorting in many industries

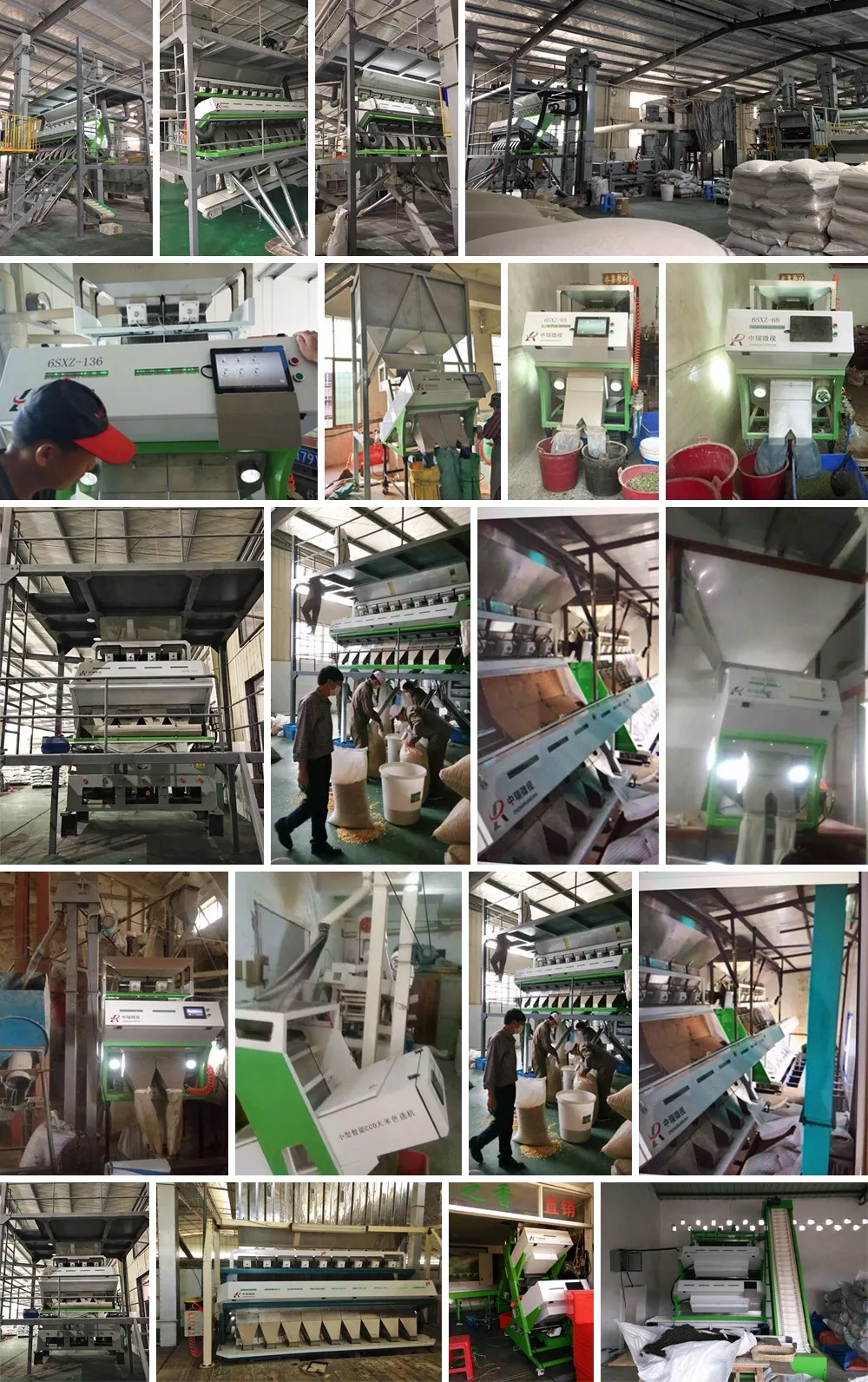

Our customers

Contact us
If you have any interesting, pls feel free to contact with me:
