Small Color Sorter Machine For Rice Soybean Peanut And Corn Grain From China Manufacturer

FOB Reference Price:Get Latest Price
  • 1 - 2 Sets
    US $12800.00
  • >=3 Sets
    US $12500.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ZRWS
Model Number:
6SXZ-68
Type:
Grain Processing Equipment
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
sesame seeds color sorting machine
Capacity(T/H):
0.5-0.7
Sorting precision(%):
99.99%
Voltage:
220V/50HZ
Power(kw):
0.7
Service:
24 Hours
Function:
color sorting
Color:
ZRWS color or customized
OEM:
Welcome
SupplyAbility
SupplyAbility:
99 Set/Sets per Week
Packaging & Delivery
Packaging Details
Export wooden box
Port
ShenZheng
Lead Time :
3-5 working days
Video Description
Product Description

Small Color Sorter Machine For Rice Soybean Peanut And Corn Grain From China Manufacturer

SPECIFICATIONS
Type
6SXZ-68
Carryover ratio(bad:good)
10:1
Capacity(T/H)
0.3-0.7
Sorting precision(%)
99%
Voltage
220V/50HZ
Power(kw)
0.7
Air Pressure(Mpa)
0.4
Air Consumption(L/min)
≤1000


5388 pixel high-resolution line scan CCD image sensor allows to identify any defects with subtlest color variation.

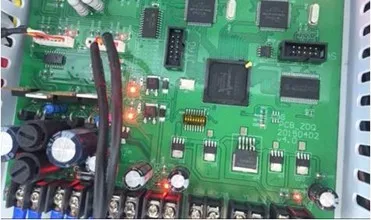

Intelligent algorithms colors shapes,digital information processor decicated for powerful industrial control,high intelligent image processing algorithms dedicated for color sorter.High-speed capture,high-speed processing,which improves the consistency of the signal path and stability and reliability of the system,thus to ensure the sorting effect.

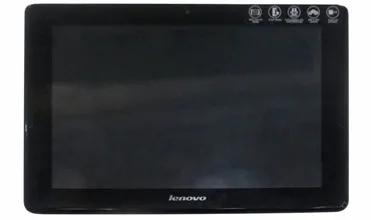

Wireless Panel PC remote Operating system. 12 inch panel PC and android 4.4 operating system. Humanized operation screen is user-friendly.

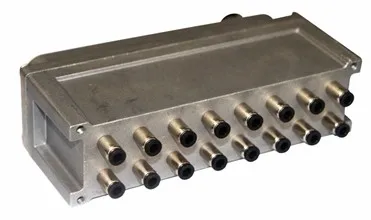

Use High-quality,high-frequency,up to 1200 HZ per second. The fastest response time within 0.6 ms .long service life ejector ,service time 5-10 billion. excellent rejection output .


Special customized aluminum alloy materials , non-toxic, harmless ,which meets the standard of international food safety .Rust proof material is unique for materials, super-wide design, feed smoothly and reduce materials waste, sort more precisely and larger capacity.

Shadowless LED lighting system allows the most precise focusing of the beam on the inspection line.The LED white light be able to apply to all the materials.


Sorting effect
Packing & Delivery
Packaging
Size
1050(L) * 1600(W) *1528 (D)
Weight
360KG



Packaging Details
Export wooden packing.
Operation

1.Product in-feed hopper
2.Vibrating plate
3.Sloping chute
4.full-color RGB CCD cameras
5.Reflector panel
6.Ejector
7.Control box
8.Discharging hopper for sorted product
9.Reject products discharging hopper.
10.DPS


Method of operation:

 (1).Input product is loaded into the in-feed hopper

 (2).it moves along the vibrating plate

 until it flows on to a sloping chute

 (3).where it is individually checked at 360° and sorted by RGB-Full color cameras

 (4) . Depending on the signals received by the optical device, the sorter software controls the pneumatic device

 (5). which physically separates the unwanted products out of the conforming ones, which naturally reach their discharging hopper

(6). The rejected products are instead deviated by a jet of compressed air produced by the relevant ejector and discharged in the front side hopper

 (7). In automatic resort versions, the sorted or rejected product to be conveyed to another section of the machine to undergo an identical process.

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory in China and has been deal with color sorter for 10 years.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we can test your samples for free charge but do not pay the cost of freight.
B: We provide free engineer to your country to help you install machine and training, But your company need bear the cost of air ticket, engineer food and room.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

Why choose us

        We are Shenzhen ZhongRuiWeiShi Optoelectronic Co.,Ltd  specialize in color sorter R&D and production basis on independent technology development,having the leading technology in intelligent color sorter. Located in XinLong industrial park ShaJing town,BaoAn district,ShenZhen China,with an area of 16,000 square meters.

      As the largest color sorter equipment manufacture base in south China, we have the top-level color sorter technical team worked in Europe and America for years. We make great efforts to explore and lead the development of color sorter technology.
       At present,our products include rice color sorter,grains color sorter,nuts color sorter,cereals color sorter ,beans color sorter, seeds color sorter ,tea color sorter, Color Sorters for Industrial products and Belt Color Sorter .Our products meet the demands of color sorting in many industries
